3D Drag Chain Fairino FR10

The 3D drag chain for the Fairino FR10 collaborative robot (cobot) offers reliable cable and air-line management for medium-payload tasks. With a 2 m length and a 37 mm internal channel, it safely routes electrical wiring and pneumatic hoses along the robot arm. Its side-open structure allows fast insertion of new lines. The kit includes 2 rounded mounts that follow the arm contour and 2 screw-on mounts that fit directly into the existing threaded holes of the FR10 cobot arm, giving both flexibility and secure installation.

‍

€ 398.00 EUR

Included

2 m drag chain (37 mm diameter)
2 rounded mounts for flexible positioning
2 screw-on mounts for direct arm attachment
Click-fit system for drag chain connection
Screw set for mount installation

Product description

The Fairino FR10 3D drag chain is engineered for robust and adaptable cable routing in collaborative robot (cobot) automation. Its 37 mm diameter provides enough space for multiple power lines, signal cables, and compressed-air hoses, making it suitable for a wide range of tooling setups. The chain’s open side system makes it quick to press in new lines without disassembly, ideal for environments where frequent changes or maintenance are required.

‍

Mounting flexibility is a key advantage: two rounded mounts attach via click-fit around the cobot arm for versatile positioning, while two screw-on mounts connect directly to pre-machined holes on the Fairino FR10 cobot arm, ensuring a rigid and durable anchor point. This hybrid system allows operators to balance stability with adjustability, preventing cable strain and maintaining a clean, safe setup. The result is an organized and long-lasting cable management solution that supports the full performance of the Fairino FR10 cobot.

‍

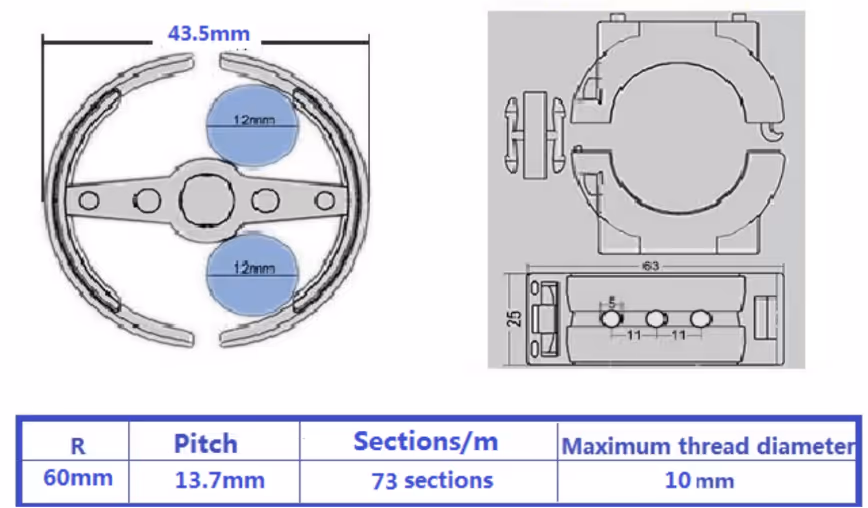

Specifications Fairino FR10 3D Drag Chain:
