3D Drag Chain Fairino FR20

The 3D drag chain for the Fairino FR20 collaborative robot (cobot) is designed for high-payload systems where robust cable and hose management is essential. With a 3 m length and 37 mm internal channel, it supports routing of power cables, signal lines, and pneumatic hoses. Its side-open design simplifies installation, letting operators press in cables quickly. Four screw-on mounts are included, which secure directly into the dedicated mounting holes of the FR20 cobot arm for maximum stability.

€ 513.00 EUR

Included

3 m drag chain (37 mm diameter)
4 screw-on mounts for direct cobot arm attachment
Click-fit system for drag chain connection
Screw set for mount installation

Product description

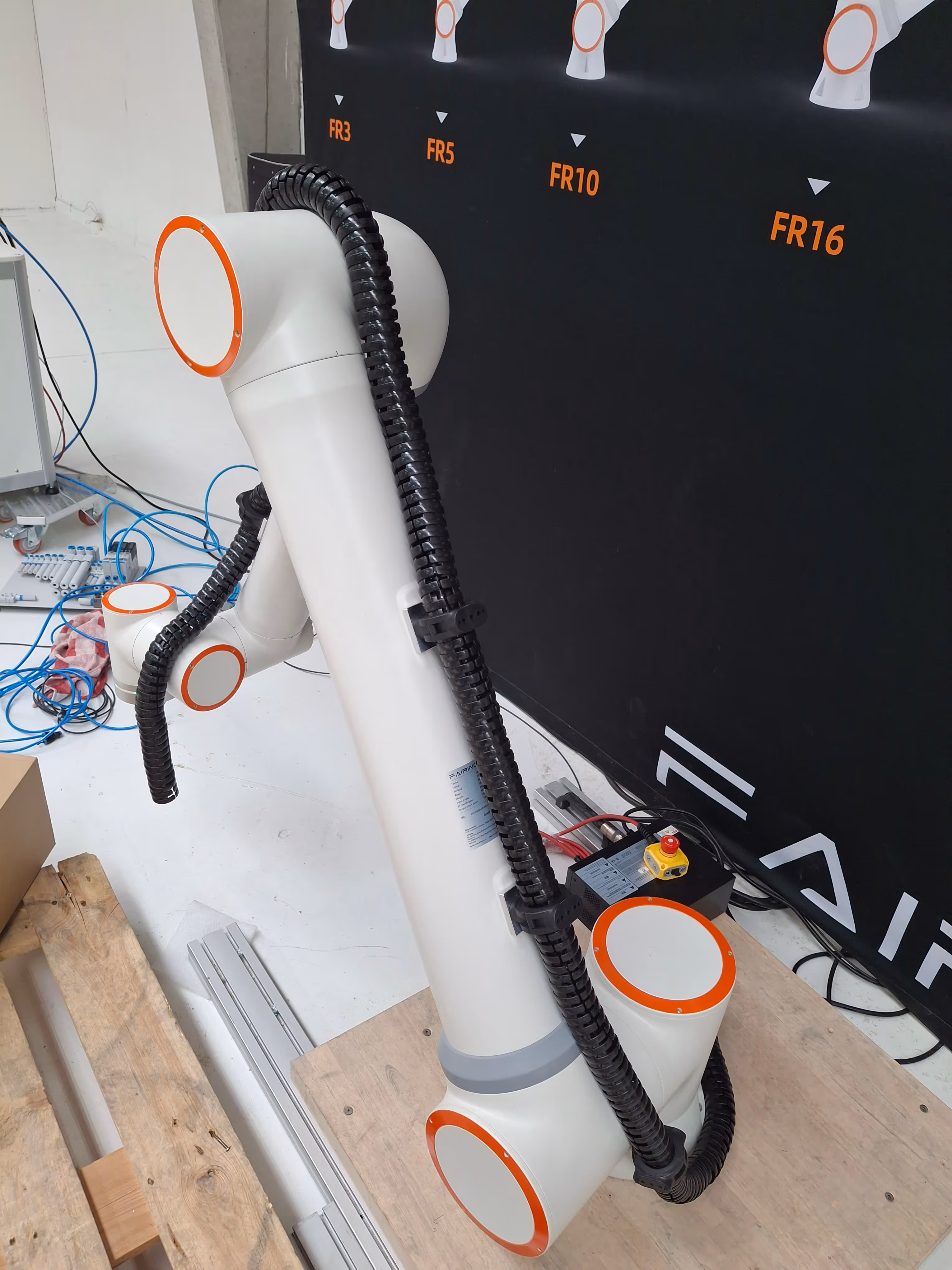

The Fairino FR20 3D drag chain is an industrial-grade solution for managing cables and air lines on heavy-duty collaborative robots (cobots). Its 3 m length accommodates the full reach of the FR20 cobot, while the 37 mm channel provides space for bundled electrical and pneumatic lines. By keeping utilities protected and neatly guided along the arm, it reduces wear, prevents tangling, and increases system reliability.

The side-open design allows fast, tool-free insertion of new lines, making it easy to adapt to changing tooling setups or maintenance needs. Four screw-on mounts are included, engineered to align with the factory mounting holes on the Fairino FR20 cobot arm. Once installed, they provide a rigid and secure anchor for the drag chain, while the click-fit connection allows the chain itself to be detached and repositioned without tools. This combination of rigidity and flexibility ensures long-term durability and optimal cable slack management.

Specifications Fairino FR20 3D Drag Chain:

Length: 3 m
Diameter: 37 mm
Mounts: 4 screw-on mounts for direct arm attachment
Design: Side-open for easy cable and air hose insertion
Compatibility: Fairino FR20 collaborative robot (cobot)

Useful links

2 m length
37 mm dia.
4 rounded mounts
Side-open design
