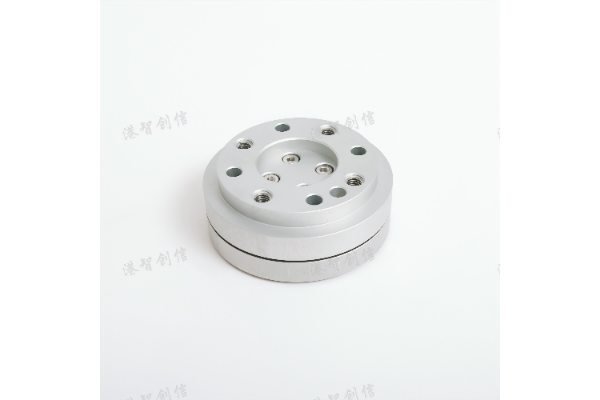

The GZCX-6F-75A six-axis force sensor enhances the capabilities of Fairino cobots by providing precise force and torque data in all directions. With its compact size and robust aluminum-alloy housing, it is ideal for industrial applications requiring accurate contact and interaction control. The sensor enables real-time constant-force operation, adaptive surface following, and sensitive contact detection, making it suitable for polishing, grinding, deburring, press-fit assembly, material testing, and quality inspection.
Its plug-and-play integration with Fairino software allows fast deployment and user-friendly configuration. Multiple communication interfaces such as RS485/422 and industrial Ethernet ensure reliable connectivity in diverse setups. Designed with IP64 protection, the GZCX-6F-75A is built for stable performance in demanding environments.
Specifications GZCX-6F-75A:
- Forces: Fx, Fy up to 100 N; Fz up to 200 N
- Torques: Mx, My up to 5 Nm; Mz up to 30.5 Nm
- Sensor diameter: 75 mm
- Sensor height: 30.5 mm
- Resolution: 0.2 %FS
- Repeatability: 0.1 %FS
- Overall accuracy: 0.25 %FS
- Zero temperature drift: ±0.02 %FS per 10 °C
- Overload level: 300 %
- Protection rating: IP64
- Operating temperature: -20 to 80 °C
- Sampling frequency: 1000 Hz
- Cable length: 0.25 m (extendable)
- Supply voltage: 12–24 VDC
- Communication: RS485 / RS422 / Industrial Ethernet
- Weight (incl. cable): 0.3 kg
- Housing material: Aluminum alloy
